Class 4 MOT Bays.
What a Class 4 bay tests, and who needs it
A Class 4 bay tests cars, light vans and dual-purpose vehicles up to 3,000kg design gross weight. It is the standard test class for garages, service centres and tyre shops carrying out DVSA MOT testing on site.

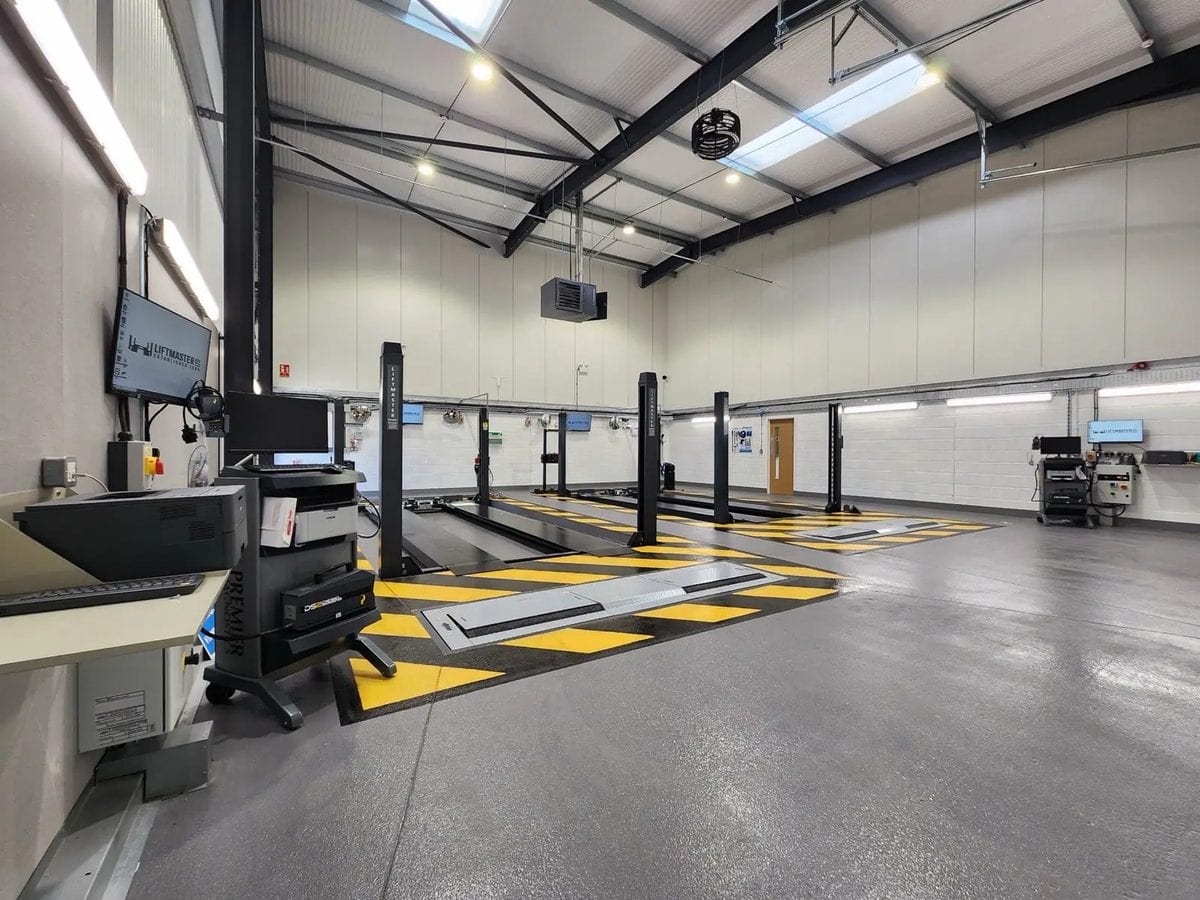

Liftmaster supplies complete Class 4 MOT bays with the lift, brake tester, headlamp tester, play detectors and turn plates specified as one installation. Complete bays carry a 2-year parts and labour warranty. Liftmaster handles the bay design, equipment supply, installation and calibration, and supports the customer through the DVSA approval process.
See the full MOT bay equipment range. If the site will also test Class 1 and 2 motorcycles, see the motorcycle MOT bay.
The equipment in a Class 4 bay

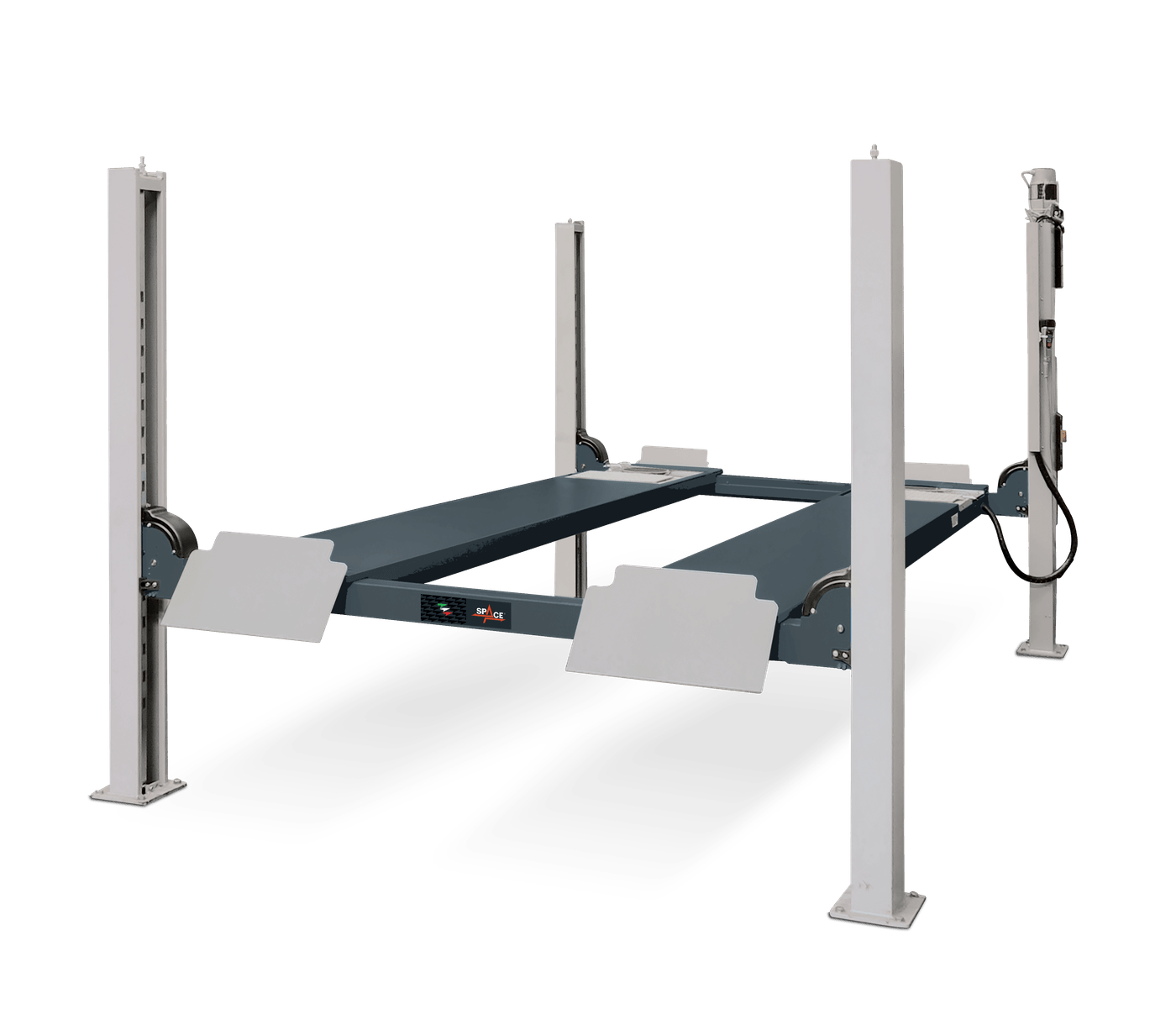

A Class 4 bay uses the core MOT equipment listed below, specified for the Class 4 layout. A scissor lift, four-post lift or pit provides under-vehicle access; ATL lift layouts pair the access system with play detectors.
A scissor lift, four-post lift or pit provides under-vehicle access. ATL lift layouts pair the access system with play detectors.
View MOT bay lifts

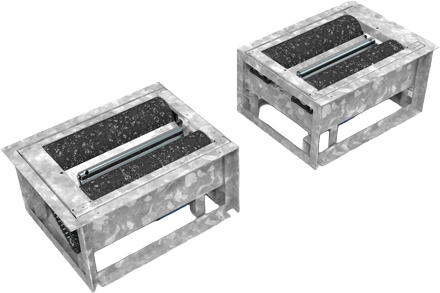

Measures braking efficiency and imbalance across the axles. Connected roller brake testers send results to the DVSA MTS system where required by the installation.
View brake testers

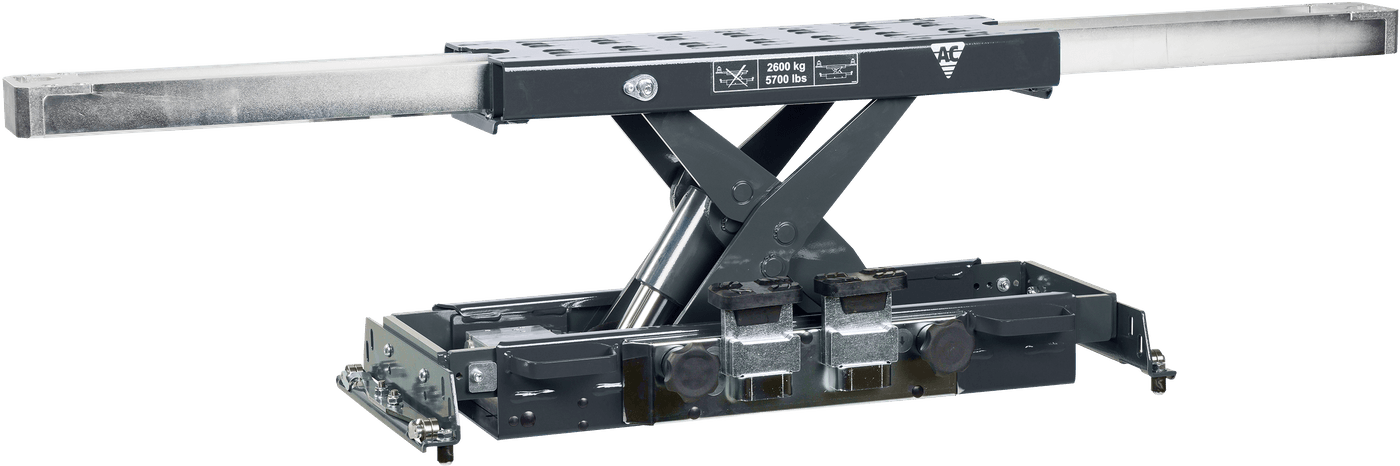

Raises an axle clear so wheel bearings, steering joints and suspension can be checked. The jacking beam is positioned to suit the lift or pit layout.
View jacking beams

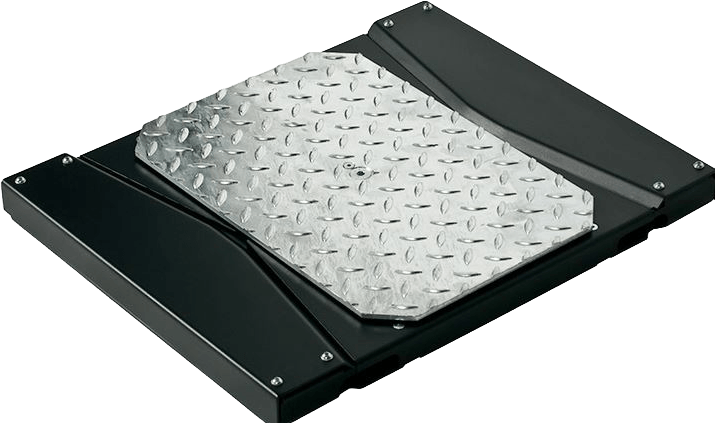

Sliding plates allow steering and suspension movement to be checked under load. They are incorporated where required by the ATL or bay configuration.
View play detectors

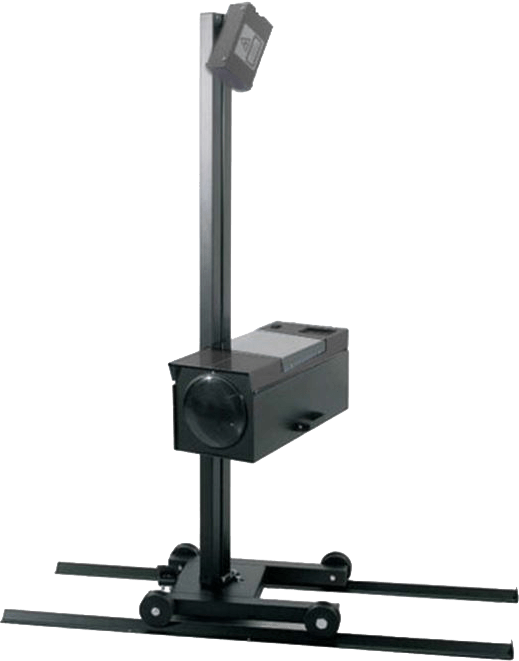

Checks headlamp beam alignment and intensity against MOT limits. The equipment is set up on the level operating area or rail system required by the selected tester.
View headlamp testers

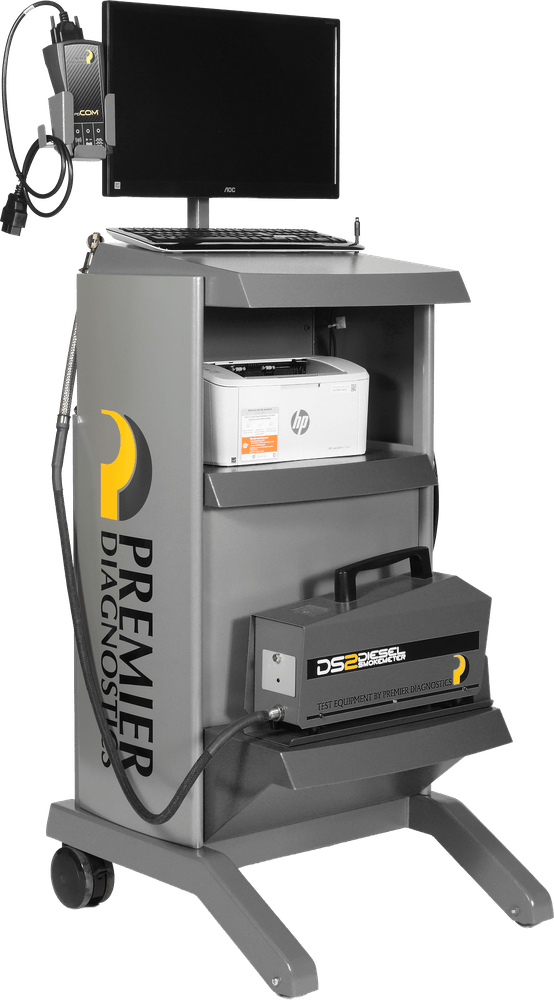

Petrol gas analysers and diesel smoke meters are specified for the emissions testing required by the vehicle classes served by the bay. Connected equipment reports to the DVSA testing service where applicable.
View emissions analysers

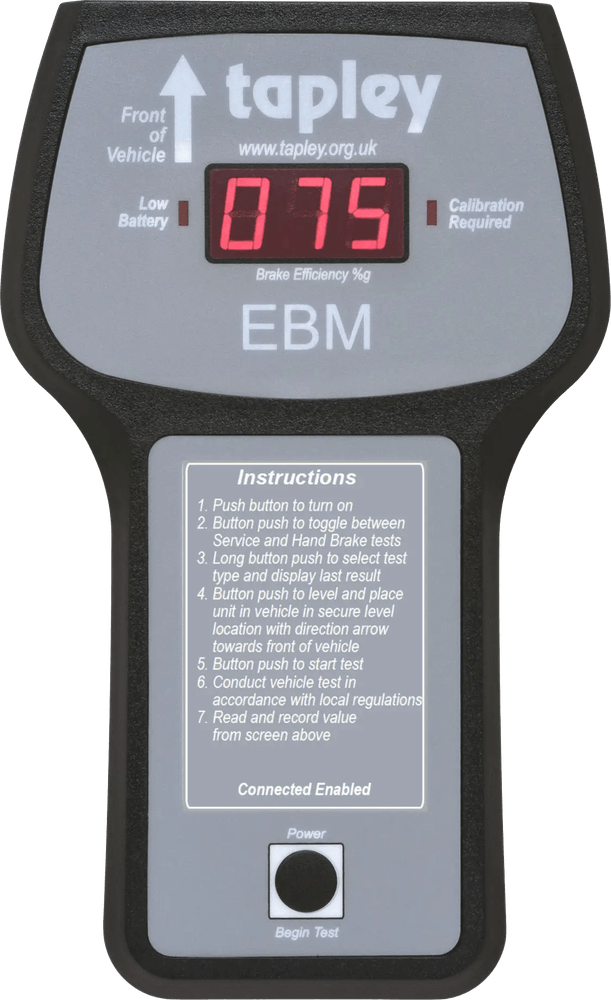

Records braking performance on a road test where a roller brake tester cannot be used for the vehicle being tested.
View decelerometersChoose your Class 4 bay

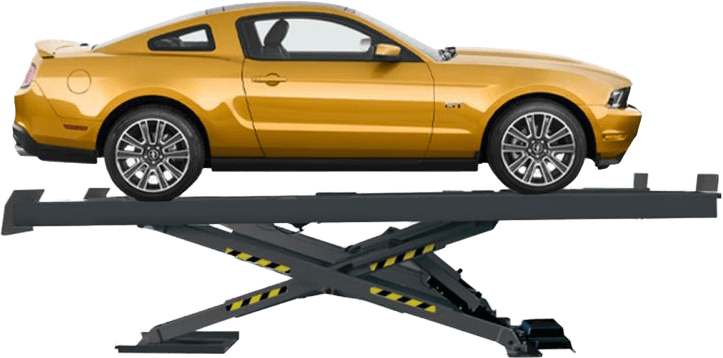

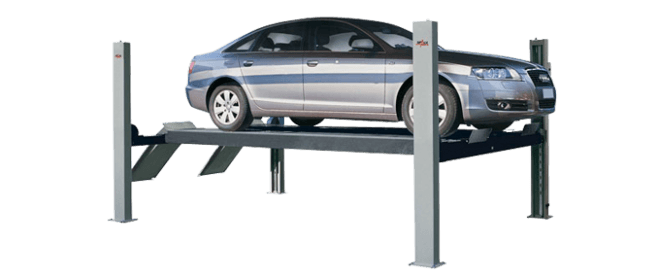

Liftmaster’s ready-made Class 4 bays are supplied as ATL as standard, with play detectors and captive turn plates. Choose a four-post or scissor lift, with wheel-alignment provision where required. A pit layout can also be specified.
- Play detectors
- Captive turn plates
- DVSA roller brake tester
- Headlamp beam tester
- Jacking beam
- Wheel alignment (rear slip plates)
- Play detectors & turn plates
- DVSA roller brake tester
- Headlamp beam tester
- Jacking beam
- Play detectors
- Captive turn plates
- DVSA roller brake tester
- Headlamp beam tester
- Jacking beam
- Wheel alignment (rear slip plates)
- Play detectors & turn plates
- DVSA roller brake tester
- Headlamp beam tester
- Jacking beam
Prefer a pit layout? See pit-based Class 4 bays.
Planning the bay
A Class 4 bay needs enough length for the vehicle and roller brake tester, suitable ceiling height for the chosen lift, and a level operating area for the headlamp tester. The site survey checks the floor, power supply, drainage and bay layout before installation.
Getting the bay approved
Liftmaster specifies the required equipment from the DVSA-approved equipment list, installs and calibrates it to the required specification, and provides the paperwork needed for the DVSA site assessment. Liftmaster supports the approval process; DVSA site authorisation remains a separate step.
Keep the bay compliant
DVSA requires MOT testing equipment to be calibrated and serviced every 6 months. Liftmaster can coordinate the servicing and calibration required across the bay.
Get a quote for your Class 4 bay
Send the site details and the test requirements and the team will come back with the equipment list and a quotation. Finance options are available.
Class 4 bay questions
Do I need an ATL for a Class 4 bay?
Can I run a Class 4 bay without a pit?
What ceiling height does a Class 4 bay need?
How long does installation take?
Is finance available on a Class 4 bay?
Other bay types
Related reading
Talk to the team about your Class 4 bay
Tell us about your unit, the MOT classes you want to test and the vehicle mix. Liftmaster will review the layout, specify the equipment and quote for supply, installation and calibration. Where a site survey or DVSA approval support is needed, the team will include that in the next steps.
